4 Doors Access Control Panel with Power Adapter Metal Box/Access Control Board with TCP/IP & Wiegand Signal(C3-400/BOX)

Name: 4 Doors Access Control Panel with Power Adapter Metal BoxAccess Control Board with TCPIP amp Wiegand SignalC3400BOX
Brand: VANSHUI
Price: 1 USD

Quality 4 Doors Access Control Panel with Power Adapter Metal Box/Access Control Board with TCP/IP & Wiegand Signal(C3-400/BOX) for sale

Brand Name : VANSHUI

Model Number : C3-400/BOX

Certification : CE,FCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000Pcs/month

Packaging Details : 40*30*10CM, Volume weight 4kg

Delivery Time : 5-8 working days

Product Description : 4 door Access Control Panel with Box

Type : Support RFID Card Reader

LED Indicator : Yes, LED indication for communication, power, status and punch card

Input Port : 12ea (Exit Button*4, Door Sensor*4,Aux*4)

Output Port : 4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/ 8A@30VAC)

Operating Temperature : 0℃-55℃

Operating Humidity : 10% to 80% relative humidity non-condensing

User : 30,000

Event Buffer : 100,000

Dimension(L*W)mm : 160(W)*106(H)(single board) 345(W)*275(H)*70(D)(with power supply and metal box)

Contact Now

PRODUCT DESCRIPTION

4 Doors Access Control Panel with Power Adapter Metal Box/Access Control Board with TCP/IP & Wiegand Signal(C3-400/BOX)

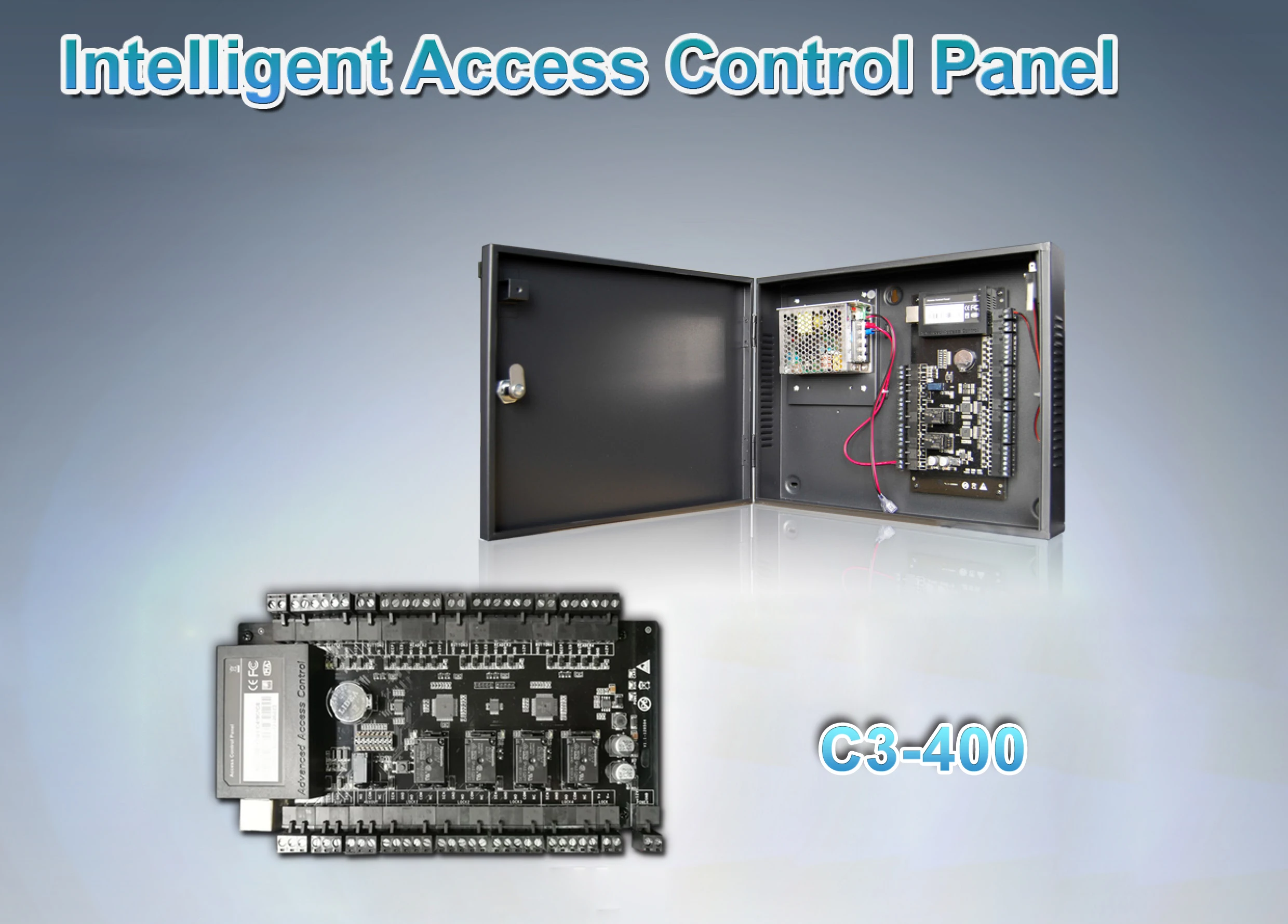

Model C3-400/BOX is Multi-door access control panel. It is one of the most rugged and reliable controllerson the market, with a multitude of built-in features. It can store up to 30,000 cardholders, canconnect RFID reader to the panel via Wiegand. It also supports real-time monitoring, communicatevia RS-485 configuration or Ethernet TCP/IP networks. Metal power box of the acces control panelis optional.

FEATURES

1/ There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
  2/ Multiple hardware protection measure.
  3/ C3-400/BOX can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
  4/ Supports different wiegand reader (wiegand 26-40 bit).
  5/ The controller support different wiegand format and can connect to different reader, including ID card reader and MF card reader.
  6/ Input/Output Ports to Control Doors
  7/ Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
  8/ Variety of Communication Function
  9/ Using either serial or TCP/IP communication, it provides reliable network system
  10/ Normal open after first punch card can be setup
  11/ Real-time Monitoring of Door status
  12/ Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
  13/ Interlock function
  14/ Link different doors with special logic that one door is Open, others should be closed.
  15/ Multi-card operation
  16/ This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed
  number registered cards are read together.
  17/ Anti-Passback, Duress Mode, SDK available
  18/ The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.

SPECIFICATION

Model	C3-400/BOX
CPU	32bit MIPS CPU
RAM	32M bits
Flash Memory	256M bits
User	30,000
Event Buffer	100,000
Power/Current	DC12V/3A
Reader Port	4ea (26bit Wiegand, 8 bit for PIN)
Communication	RS485, TCP/IP
Baud Rate	38,400bps(Recommended)/ 9600bps, 19,200bps,57,600bps(selectable)
Input Port	12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door sensor#2, Door sensor#3, Door sensor#4, Aux#1,Aux#2,Aux#4)
Output Port	4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/ 8A@30VAC)
LED Indicator	Yes, LED indication for communication, power, status and punch card
Operating Temperature	0℃ to 55℃
Operating Humidity	10% to 80% relative humidity non-condensing
Dimension (mm)	218(W)*106(H)(Single board)
Dimension (mm)	345(W)275(H)70(D)(with power supply and metal box)
Software	Access 3.5

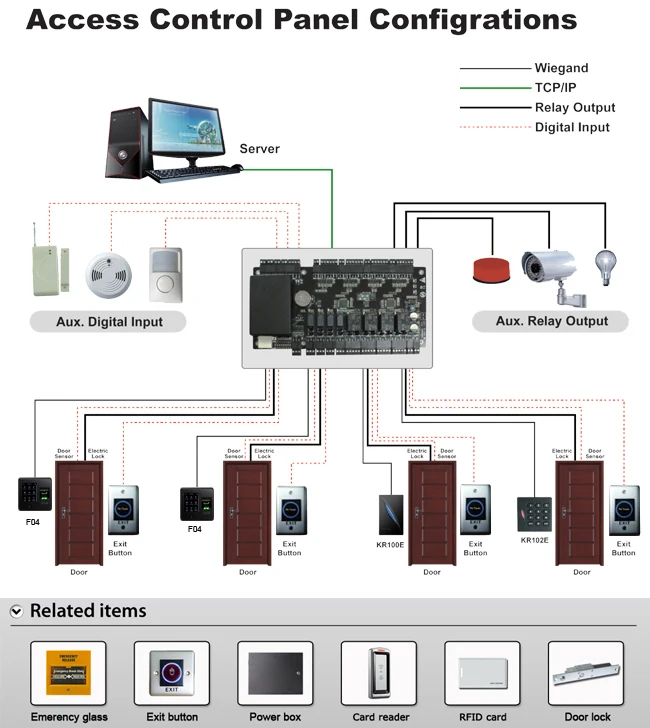

DIAGRAM

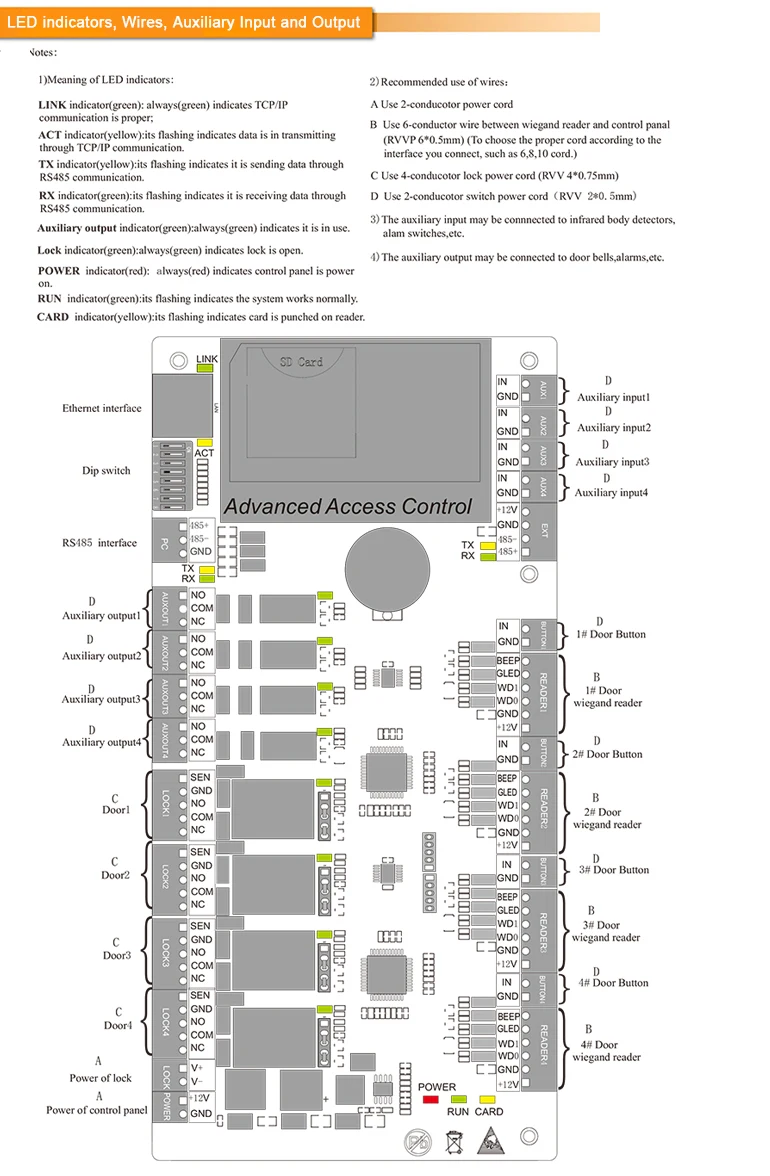

DETAILS

SOFTWARE

PRODUCTS PACKAGE
