PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Anti-vandal Features

Name: PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Antivandal Features
Brand: VANSHUI
Price: 22 USD

Quality PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Anti-vandal Features for sale

Brand Name : VANSHUI

Model Number : U10

Certification : CE,FCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1pcs

Price : USD22-USD27

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000Pcs/month

Packaging Details : Package Weight:1kg Package Size:30cm x 20cm x 8cm

Delivery Time : sample order within 3-4days.

Ingress Protection Grade : IP67

Keypad : White backlit, Numeric keys 0-9, function keys *, #,Bell

Access Control Interface : Electric Lock, Exit Button, Alarm, Doorbell, Door sensor

Wiegand format : Wiegand26/34 input & output

Reading Distance : 3-6CM

Operate Temperature : -35℃-60℃

Built-in Card Reader : Standard ID card, Optional IC card

Verification Mode : Card, PIN, Card+PIN, WiFi(optional)

Contact Now

PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Anti-vandal Features

PRODUCT DESCRIPTION

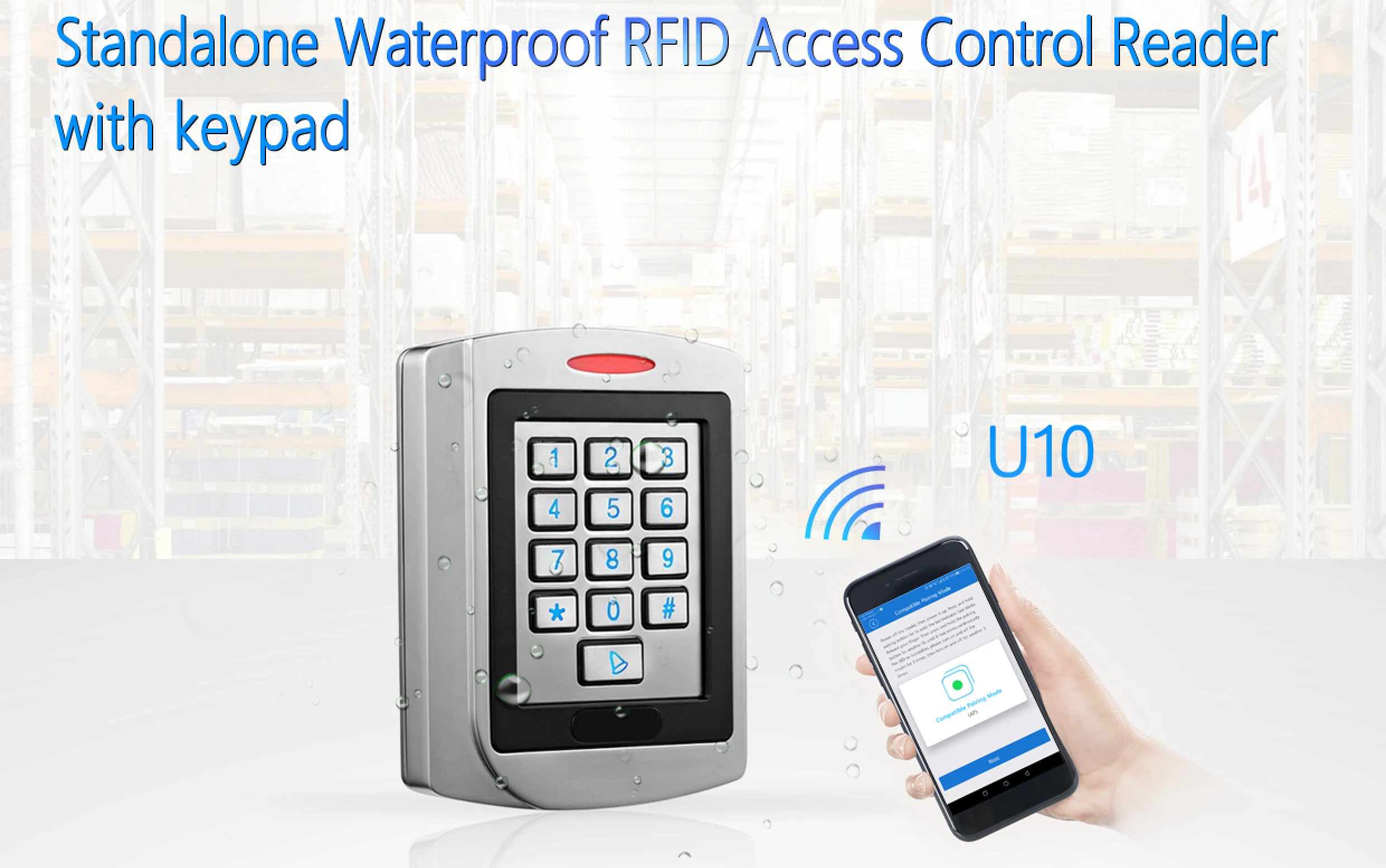

Model U10: Anti-Vandal Waterproof IP67 PIN Code+RFID Card Access Control Reader (Optional: WIFI App)

FEATURES

1/ 2000 uses, supports Card, PIN, Card + PIN,WiFi APP(optional) .
  2/ Anti-vandal, Waterproof & Backlight Keypad.
  3/ Wiegand 26/34 input & output.
  4/ Mounts easily to interior and exterior walls.
  5/ One programmable relay output, NO, NC, COM.
  6/ Adjustable door output time, Alarm time, Door open time.
  7/ Block enrollment, can enroll maximum 2,000 consecutive card within 2 minutes.
  8/ Very low power consumption (<60mA).
  9/ Built in light dependent resistor (LDR) for anti tamper.
  10/ WiFi function is optional.

SPECIFICATION

Model	U10
Operating Voltage	12-24VDC	Operate Humidity	10%-90%RH
User Capacity	2000 (Card Capacity)	Protection Grade	IP67
Keypad	White backlit, Numeric keys 0-9, function keys *, #,Bell	Access Control Interface	Electric Lock, Exit Button, Alarm, Doorbell, Door sensor
Verification Type	Card, PIN, Card+PIN, WiFi(optional)	Door Relay Time	0~99 seconds
Reading Distance	3-6cm	Wiegand format	Wiegand26/34 input & output
Active Current	<80mA	Alarm Time	0~3 minutes
Idle Current	<60mA	Dimensions	1207627mm
Lock Output load	Max2A	Net Weight	0.6KG
Alarm Output load	Max1A	Gross Weight	0.8KG
Operate Temperature	-35℃-60℃	Built-in Card Reader	125KHz EM card, 13.56Mhz IC card

Model	Description
U10/ID	Waterproof IP68 125KHz ID Card Access Control Reader
U10/IC	Waterproof IP68 13.56MHz IC Card Access Control Reader
U10/ID/APP	Waterproof IP68 125KHz ID Card Access Control Reader with WIFI APP
U10/IC/APP	Waterproof IP68 13.56KHz IC Card Access Control Reader with WIFI APP

DIAGRAM

DETAILS
